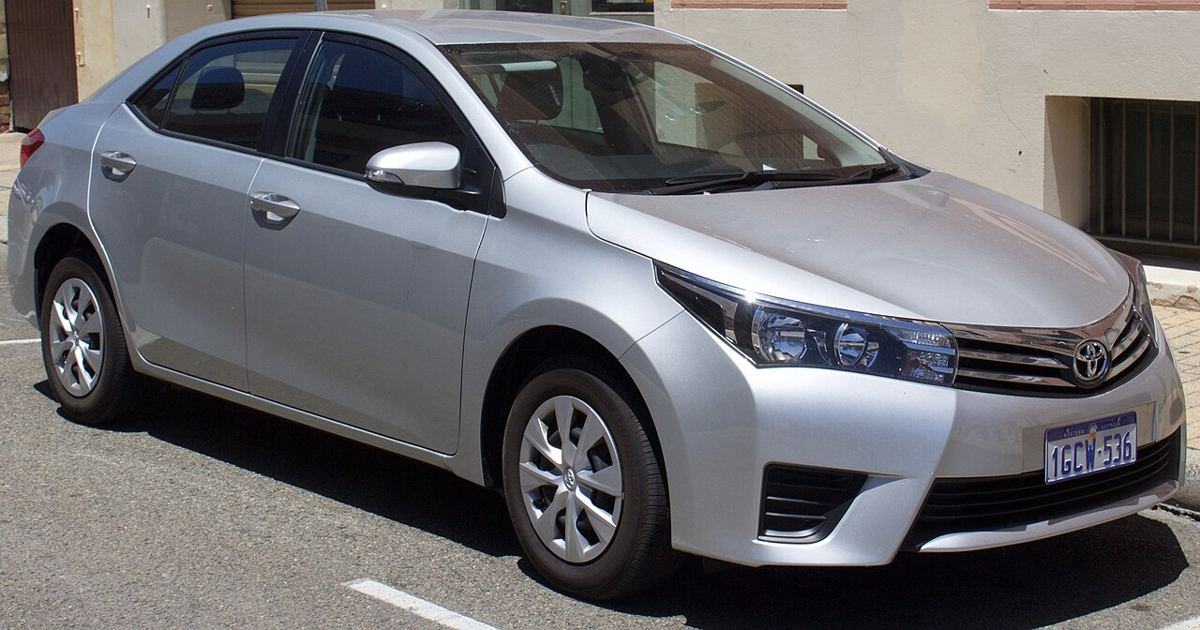

2016 · Toyota · 11th gen sedan (E170)
2016 Toyota Corolla parts sizes
What the official 2016 Toyota Corolla owner's manual prints for replacement parts: bulbs and oil. Every value below is copied from the manual, with the PDF page so you can check it yourself.
- bulbs
- oil
- High beam
- 9005 · 60 W
- Fog lights
- H16 · 19 W
- Engine oil
- ILSAC GF-5 SAE 0W-20
- 1High beam headlamp 9005
- 2Engine oil 0W-20
2016 Toyota Corolla owner's manual
Source: the official 2016 Corolla owner's manual (PDF from Toyota).
Exterior bulbs
| Position | Bulb | Watts | Manual |
|---|---|---|---|
| High beam headlamp (HB3 per legend; low beam not listed) | 9005 | 60 W | p. 559 |
| Front side marker lights (bulb No. blank) | wedge (clear) | 5 W | p. 559 |
| Front turn signal/parking lights | 7444NA | 28/8 W | p. 559 |
| Front fog lights (if equipped; bulb No. blank; H16 per legend) | H16 | 19 W | p. 559 |
| Side turn signal lights (if equipped; bulb No. blank) | wedge (amber) | 5 W | p. 559 |
| Rear turn signal lights (bulb No. blank) | wedge (amber) | 21 W | p. 559 |
| Stop/tail and rear side marker lights | 7443 | 21/5 W | p. 559 |
| License plate lights (bulb No. blank) | wedge (clear) | 5 W | p. 559 |
| Back-up lights | 921 | 16 W | p. 559 |
Engine oil
The manual specifies ILSAC GF-5 SAE 0W-20 (capacity not in snippet) — page 553.
How the 2016 compares with nearby years
Against the 2015 Corolla: The high-beam bulb is the same in both manuals.
Against the 2017 Corolla: the two manuals do not print the same part types, so there is nothing to compare line by line.
The 2016 Corolla belongs to the 11th gen sedan (E170), which began with the 2014 model year (MY2017 refresh (LED headlights standard per Toyota; not detailed on Wikipedia)); generation dates. Parts often carry over within a generation, but the manual for your exact model year is the one to trust.
Shared with other 2016 models
- Oil viscosity 0W20: 8 other 2016 models in this site's data print the same, including Nissan Sentra, Toyota 4Runner, Toyota Camry, Toyota Highlander, Toyota RAV4, Toyota Sienna, Toyota Tacoma, Toyota Tundra.
- 9005 (high beam headlamp): 11 other 2016 models list it, including Chevrolet Trax, Ford Escape, Ford Explorer, Ford F-150, Ford Transit, Mazda CX-5.
- 7444 (front turn signal/parking lights): 11 other 2016 models list it, including Chevrolet Traverse, Chevrolet Trax, Ford F-150, Mazda CX-5, Nissan Altima, Nissan Rogue.
- H16 (front fog lights): 5 other 2016 models list it, including Toyota 4Runner, Toyota Highlander, Toyota RAV4, Toyota Tacoma, Toyota Tundra.
- 7443 (stop/tail and rear side marker lights): 7 other 2016 models list it, including Chevrolet Traverse, Mazda CX-5, Mazda Mazda3, Toyota Camry, Toyota RAV4, Toyota Sienna.
- 921 (back-up lights): 13 other 2016 models list it, including Chevrolet Equinox, Chevrolet Trax, Ford Escape, Ford F-150, Mazda CX-5, Mazda Mazda3.
A shared number means the same replacement part fits both cars, so one spare can cover two cars in the household.
What the manual does not print
The 2016 Toyota Corolla owner's manual does not list wipers, battery and filters sizes; for the battery, read the label on the battery fitted to the car, then check the size against the BCI group chart; for wipers, measure each blade end to end and buy the nearest whole-inch size.
Buying the parts for a 2016 Corolla
- Headlight bulbs: the 9005 high beam are halogen capsules on trims that have them; buy them in pairs so both sides match in colour and output.
- Small bulbs: this manual names 5 replaceable bulb positions. Wedge bulbs such as W5W and 194 differ from twist-socket bulbs such as 7443 or 3157, so match the full number, including suffixes like NA (amber).
- Oil: ILSAC GF-5 SAE 0W-20. Use the grade printed for your engine if the manual lists more than one.
Check it on your car
Trim, engine and lighting package change some of these parts, so match the row that names your engine or trim. The facts on this page come from 2 pages of the manual (553, 559). Before you buy, compare the number printed on the old part with the table above. See how this site reads manuals.
