Chevrolet Equinox parts sizes by model year

This site has read 9 owner's manual years for the Chevrolet Equinox (2015–2018, 2020–2024). The table puts the main replacement sizes side by side so you can see which years share parts. Open a year for the full list with manual page numbers.

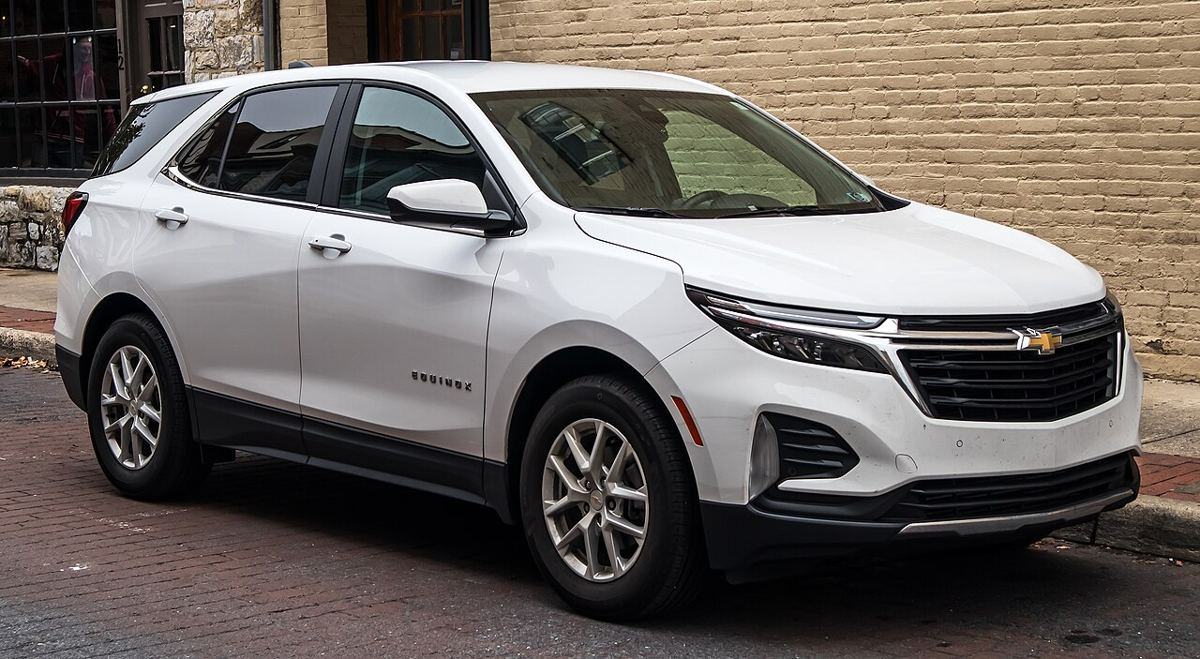

Chevrolet Equinox, recent model, front three-quarter view — Chevrolet Equinox (recent model shown). Photo: © M 93, CC BY-SA 3.0 de, via Wikimedia Commons (resized)

1Wipers 24" + 18" + 12" rear
2Oil filter PF64

Where the parts sit, with the sizes from the newest Equinox manual on this site.

Chevrolet Equinox driver-side wiper length by model year (bars to scale), from each year's owner's manual.

Year	Wipers (driver / passenger)	Low beam	High beam	Oil filter	Battery
2015	600 / 425 mm	—	—	PF457G	—
2016	600 / 425 mm	—	—	PF457G	—
2017	600 / 425 mm	—	—	PF457G	—
2018	600 / 450 mm	—	—	PF64	—
2020	600 / 450 mm	—	—	PF64	—
2021	600 / 450 mm	—	—	PF64	—
2022	600 / 450 mm	—	—	PF64	—
2023	600 / 450 mm	—	—	PF64	—
2024	600 / 450 mm	—	—	PF64	—

Year by year

2015: the manual prints wipers, bulbs and filters, with 5 bulb numbers.
2016: the manual prints wipers, bulbs and filters, with 5 bulb numbers; changed from 2015: oil filter.
2017: the manual prints wipers, bulbs and filters, with 4 bulb numbers; same wiper blade lengths, oil filter and cabin air filter as 2016.
2018: the manual prints wipers, filters and oil; changed from 2017: wiper blade lengths, oil filter and cabin air filter.
2020: the manual prints wipers and filters; same wiper blade lengths, oil filter and cabin air filter as 2018.
2021: the manual prints wipers and filters; changed from 2020: oil filter.
2022: the manual prints wipers and filters; same wiper blade lengths, oil filter and cabin air filter as 2021.
2023: the manual prints wipers and filters; same wiper blade lengths, oil filter and cabin air filter as 2022.
2024: the manual prints wipers and filters; same wiper blade lengths, oil filter and cabin air filter as 2023.

Generations covered

The Equinox years on this site span 2 generations: 2nd gen and 3rd gen. Parts such as bulbs and wiper arms usually change at a new generation and sometimes at a mid-cycle refresh, which is where the table above tends to change.

Bulb numbers across the years

Bulb	Printed as	Positions	Years
921	921	back-up lamp	2015–2017
W5W	W5WLL	license plate lamp	2015–2017
194	194	sidemarker rear	2015–2016
3157	3157K RD	taillamp/turn signal lamp/stop lamp	2015–2016
H8	H8LL	fog lamp front	2016–2017
7443	7443LL	taillamp/turn signal lamp/stop lamp	2017
H11	H11 LL	fog lamp front	2015

The 921 is also listed by 18 other models on this site, including the Chevrolet Silverado 1500, Chevrolet Trax and Ford Escape. The W5W is also listed by 33 other models on this site, including the Chevrolet Trax, Ford Escape and Ford Explorer. The 194 is also listed by 6 other models on this site, including the Chevrolet Traverse, Ford Escape and GMC Sierra 1500. The 3157 is also listed by 7 other models on this site, including the Ford Escape, Ford F-150 and Nissan Altima. A shared number is the same replacement bulb, whichever car it came from.

Reading the table

A dash means the Equinox manual for that year does not print the value, not that the part does not exist. Makers differ in what they print: some list wiper lengths and filter part numbers, others list only bulbs. Where a cell changes from one year to the next, the part changed in the manual too, often at a new generation or a mid-cycle update.

Generations covered start with the 2nd gen. See each year page for the generation it belongs to.
